This is done by heat & pressure using no glue.

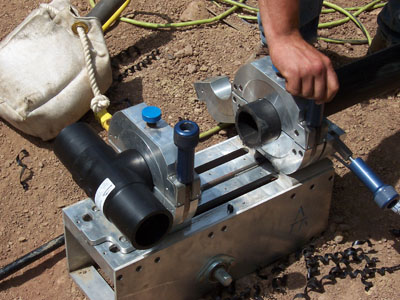

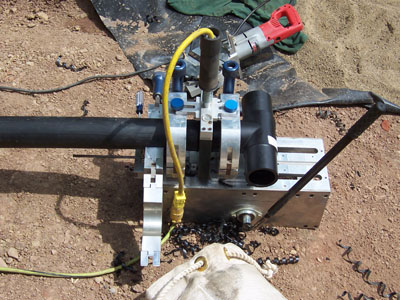

In this picture a 4' length of pipe is in the machine where it will be
welded on to a tee fitting and used as a cleanout

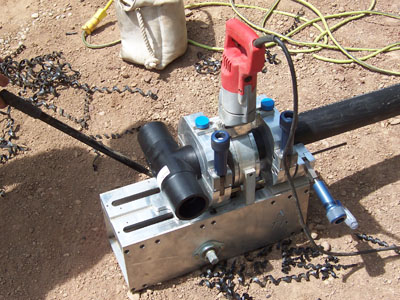

The ends of the pipe and 1 end of the tee are cut even.
Once squared, a heating pad heats the ends of the pipe to 475 degrees.
Once the ends are hot enough, the heating pad is removed and the 2

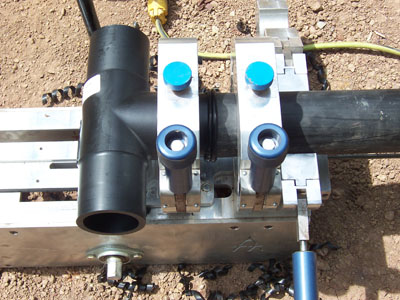

ends are pushed together. A large bead forms on the outside and inside
of the welded joint. This is from the pressure as the ends are pushed together.
